FRASCOLD SPA jedinica za visoke temperature
Visokotemperaturna pužna jedinica FRASCOLD SPA integrirano je rashladno rješenje dizajnirano za srednje do visoke primjene temperature isparavanja, s ciljanom optimizacijom strukture sustava, stabilnošću rada i sveobuhvatnom konfiguracijom. Jedinica ima kompaktan, integrirani dizajn, kombinirajući vijčani kompresor, sustav za odvajanje ulja, rashladne uređaje i upravljačke sustave u visoko kohezivnu jedinicu. Ovaj dizajn ne samo da osigurava optimalne performanse hlađenja, već i učinkovito štedi prostor u strojarnici. Integrirana konfiguracija pojednostavljuje proces instalacije na licu mjesta i pruža pogodne uvjete za naknadno održavanje i servisiranje, što ga čini idealnim za rashladne projekte gdje su korištenje prostora i upravljanje opremom ključna razmatranja.
Što se tiče konfiguracije jezgre snage, jedinica je opremljena poluhermetičkim vijčanim kompresorima renomiranih domaćih i svjetskih marki. Ovi kompresori imaju razvijenu tehnologiju, stabilnu radnu učinkovitost i sposobni su za kontinuirani, kontinuirani rad u uvjetima srednje do visoke temperature. Kompresori su dizajnirani da minimiziraju vibracije i smanjuju razinu buke, što pomaže u poboljšanju radnog okruženja u strojarnici i smanjuje utjecaj na okolna područja. Stabilan mehanički dizajn također pridonosi produženom vijeku trajanja kompresora, smanjujući učestalost održavanja tijekom rada.
Uvod u parametre opreme
Prikaz detalja
Kontaktirajte nas
Uvod u parametre opreme
| Model jedinice | Kom.Model | Kom. Curtity | Kondenzirajući temp. (℃) | Temp. isparavanja (℃) | Rezervoar (L) | Opskrba cijev (mm) | Usisavanje cijev (mm) | Gas Outiet cijev (mm) | tekućina ulazna cijev (mm) | Dimenzija (mm) (D׊×V) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapacitet hlađenja/ulazna snaga (kw) | |||||||||||||||||||
| LXPL-FSF-40H | RTSH-40 -120Y (40KS) | 1 | 35 | 60.6 | 21.5 | 23.4 | 22.2 | 88.3 | 23.4 | 1053 | 24.9 | 124.7 | 26.4 | 60 | Φ28 | Φ54 | Φ42 | Φ28 | 2300×1000×1500 |
| 40 | 54.2 | 25.6 | 66.2 | 26.1 | 79.9 | 27.1 | 95.7 | 28.4 | 113.7 | 29.9 | |||||||||
| 45 | 46.6 | 31.1 | 57.6 | 31.2 | 70.1 | 32.5 | 84.5 | 34.0 | 100.9 | 35.6 | |||||||||
| LXPL-BFSF2 -80H | 2 | 35 | 121.2 | 43.0 | 146.8 | 44.4 | 176.6 | 46.8 | 210.6 | 49.8 | 299.4 | 52.8 | 120 | Φ28 | Φ89 | Φ54 | Φ35 | 2500×1800×1800 | |
| 40 | 108.4 | 51.2 | 132.4 | 52.2 | 159.8 | 54.2 | 191.4 | 56.8 | 227.4 | 59.8 | |||||||||
| 45 | 93.2 | 62.2 | 115.2 | 62.4 | 140.2 | 65.0 | 169.0 | 68.0 | 201.8 | 71.2 | |||||||||
| LXPL-BFSF3 -120H | 3 | 35 | 181.8 | 64.5 | 202.2 | 66.6 | 264.9 | 70.2 | 315.9 | 74.7 | 374.1 | 79.2 | 150 | Φ35 | Φ76×2 | Φ89 | Φ42 | 3200×1800×1800 | |
| 40 | 162.6 | 76.8 | 198.6 | 78.3 | 239.7 | 81.3 | 287.1 | 85.2 | 341.1 | 89.7 | |||||||||
| 45 | 139.8 | 93.3 | 172.8 | 93.6 | 210.3 | 97.5 | 253.5 | 102.0 | 302.7 | 106.8 | |||||||||
| LXPL-BFSF4 -160H | 4 | 35 | 242.4 | 86.0 | 293.6 | 88.8 | 353.2 | 931.6 | 421.2 | 99.6 | 498.8 | 150.6 | 200 | Φ35 | Φ89×2 | Φ89 | Φ42 | 3900×1800×1800 | |
| 40 | 216.8 | 102.4 | 264.8 | 104.4 | 319.6 | 108.4 | 382.8 | 113.6 | 454.8 | 119.6 | |||||||||
| 45 | 186.4 | 124.4 | 230.4 | 124.8 | 280.4 | 130.0 | 338.0 | 136.0 | 403.6 | 142.4 | |||||||||
| LXPL-FSF-50H | RTSH-50 -150Y (50KS) | 1 | 35 | 74.8 | 24.9 | 90.8 | 26.0 | 109.2 | 27.2 | 130.3 | 28.3 | 154.6 | 29.1 | 80 | Φ28 | Φ89 | Φ42 | Φ22 | 2300×1000×1500 |
| 40 | 67.4 | 29.1 | 82.1 | 30.8 | 99.1 | 31.5 | 118.6 | 33.0 | 140.9 | 34.5 | |||||||||
| 45 | 59.7 | 37.2 | 73.1 | 37.7 | 88.6 | 38.9 | 106.4 | 40.5 | 126.8 | 42.4 | |||||||||
| LXPL-BFSF2 -100H | 2 | 35 | 149.6 | 49.8 | 181.6 | 52.0 | 218.4 | 54.4 | 260.6 | 56.6 | 309.2 | 58.2 | 150 | Φ28 | Φ89 | Φ89 | Φ35 | 2500×1800×1800 | |
| 40 | 134.8 | 58.2 | 164.2 | 61.6 | 198.2 | 63.0 | 237.2 | 66.0 | 281.8 | 69.0 | |||||||||
| 45 | 119.4 | 74.4 | 146.2 | 75.4 | 177.2 | 77.8 | 252.8 | 81.0 | 753.6 | 84.8 | |||||||||
| LXPL-FSF3 -150H | 3 | 35 | 224.4 | 74.7 | 272.4 | 78.0 | 327.6 | 81.6 | 39.09 | 84.9 | 463.8 | 87.3 | 200 | Φ35 | Φ89 ×2 | Φ89 | Φ42 | 3200×1800×1800 | |
| 40 | 202.2 | 87.3 | 246.3 | 92.4 | 297.3 | 94.5 | 3558 | 99.0 | 422.7 | 103.5 | |||||||||
| 45 | 179.1 | 111.6 | 219.3 | 113.1 | 256.8 | 116.7 | 319.2 | 121.5 | 380.4 | 127.2 | |||||||||
| LXPL-BFSF4 -200H | 4 | 35 | 299.2 | 99.6 | 363.2 | 104.0 | 436.0 | 108.8 | 521.2 | 113.2 | 618.4 | 117.6 | 250 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3900×1800×1800 | |
| 40 | 2696 | 116.4 | 328.4 | 123.2 | 396.4 | 126.0 | 474.4 | 132.0 | 563.6 | 138.0 | |||||||||
| 45 | 238.8 | 148.8 | 297.4 | 150.8 | 354.4 | 155.6 | 425.6 | 1620 | 507.2 | 169.6 | |||||||||
| LXPL-FSF-50H | NRH2-60 -186Y (60KS) | 1 | 35 | 92.5 | 30.6 | 112.2 | 31.6 | 135.0 | 33.1 | 161.2 | 34.4 | 191.2 | 35.6 | 80 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 82.6 | 35.7 | 100.7 | 36.7 | 121.7 | 38.1 | 145.7 | 39.7 | 173.2 | 41.3 | |||||||||
| 45 | 71.0 | 43.2 | 87.7 | 44.2 | 106.8 | 45.7 | 128.8 | 47.6 | 153.4 | 50.0 | |||||||||
| LXPL-BFSF2 -100H | 2 | 35 | 185.0 | 61.2 | 224.4 | 63.2 | 270.0 | 66.2 | 322.4 | 68.8 | 382.4 | 71.2 | 200 | Φ35 | Φ108 | Φ89 | Φ42 | 2500×2000×1850 | |
| 40 | 165.2 | 71.4 | 201.4 | 73.4 | 243.4 | 76.2 | 291.4 | 79.4 | 346.4 | 82.4 | |||||||||
| 45 | 142.0 | 86.4 | 175.4 | 88.4 | 213.6 | 91.4 | 257.6 | 95.2 | 306.8 | 100.0 | |||||||||
| LXPL-BFSF3 -150H | 3 | 35 | 277.5 | 91.8 | 336.6 | 94.8 | 405.0 | 99.3 | 483.6 | 103.2 | 573.6 | 106.8 | 250 | Φ42 | Φ108 ×2 | Φ89 | Φ54 | 4100×1950×1750 | |
| 40 | 247.8 | 107.1 | 302.1 | 110.1 | 365.1 | 114.3 | 437.1 | 119.1 | 519.6 | 123.6 | |||||||||
| 45 | 213.0 | 129.6 | 263.1 | 132.6 | 320.4 | 137.1 | 386.4 | 142.8 | 460.2 | 150.0 | |||||||||
| LXPL-BFSF4 -200H | 4 | 35 | 370.0 | 122.4 | 448.8 | 126.4 | 540.0 | 132.4 | 644.8 | 137.6 | 764.8 | 142.4 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 4950×1950×1800 | |
| 40 | 330.4 | 142.8 | 402.8 | 146.8 | 488.8 | 157.4 | 582.8 | 158.8 | 692.8 | 164.8 | |||||||||
| 45 | 284.0 | 172.8 | 350.8 | 176.8 | 427.2 | 182.8 | 515.2 | 190.4 | 613.6 | 200.0 | |||||||||
| Model jedinice | Cam.Model | Cam, Cuartity | Kondenzirajući temp. (℃) | Temp. isparavanja (℃) | Rezervoar (L) | Opskrba cijev (mm) | Usisavanje cijev (mm) | Gas Outiet cijev (mm) | tekućina ulazna cijev (mm) | Dimenzija (mm) (DxŠ×V) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapacitet hlađenja/ulazna snaga (kw) | |||||||||||||||||||
| LXPL-FSF-70H | NRH2-70 -210Y (70KS) | 1 | 35 | 103.3 | 33.9 | 126.3 | 35.7 | 153.0 | 37.4 | 183.7 | 38.7 | 218.9 | 394 | 100 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 91.0 | 39.2 | 111.9 | 41.3 | 136.1 | 43.6 | 163.9 | 45.7 | 195.8 | 47.5 | |||||||||
| 45 | 78.1 | 46.6 | 97.0 | 48.7 | 118.7 | 51.2 | 143.7 | 53.8 | 172.3 | 56.4 | |||||||||
| LXPL-BFSF2 -140H | 2 | 35 | 206.6 | 67.8 | 252.6 | 71.4 | 306.0 | 74.8 | 367.4 | 77.4 | 437.8 | 78.8 | 200 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×1800×1800 | |
| 40 | 182.0 | 78.4 | 223.8 | 82.6 | 272.2 | 87.2 | 327.8 | 91.4 | 391.6 | 95.0 | |||||||||
| 45 | 156.2 | 93.2 | 194.0 | 97.4 | 237.4 | 102.4 | 287.4 | 107.6 | 344.6 | 112.8 | |||||||||
| LXPL-BFSF3 -210H | 3 | 35 | 309.9 | 101.7 | 378.9 | 107.1 | 459.0 | 112.2 | 551.1 | 116.1 | 656.7 | 118.2 | 300 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×1850×1800 | |
| 40 | 273.0 | 117.6 | 335.7 | 123.9 | 408.3 | 130.8 | 491.7 | 137.1 | 587.4 | 142.5 | |||||||||
| 45 | 156.2 | 139.8 | 291.0 | 146.1 | 356.1 | 153.6 | 431.1 | 161.4 | 516.9 | 169.2 | |||||||||
| LXPL-BFSF4 -280H | 4 | 35 | 413.2 | 135.6 | 505.2 | 142.8 | 612.0 | 149.6 | 734.8 | 154.8 | 875.6 | 157.6 | 400 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 3900×1850×1800 | |
| 40 | 364.0 | 156.8 | 447.6 | 165.7 | 544.4 | 174.4 | 655.6 | 182.8 | 783.2 | 190.0 | |||||||||
| 45 | 312.4 | 186.4 | 388.0 | 194.8 | 474.8 | 240.8 | 574.8 | 215.2 | 689.2 | 225.6 | |||||||||
| LXPL-FSF-80H | NRH3-80 -240Y (80KS) | 1 | 35 | 123.0 | 38.9 | 149.3 | 40.7 | 179.6 | 43.7 | 214.5 | 46.2 | 254.2 | 49.4 | 150 | Φ28 | Φ89 | Φ54 | Φ28 | 2300×1000×1500 |
| 40 | 109.0 | 46.5 | 132.9 | 47.8 | 160.5 | 50.6 | 192.2 | 52.7 | 228.5 | 55.6 | |||||||||
| 45 | 94.3 | 56.6 | 115.9 | 58.2 | 140.6 | 60.9 | 169.1 | 641.1 | 201.6 | 67.6 | |||||||||
| LXPL-BFSF2 -160H | 2 | 35 | 246.0 | 77.8 | 298.6 | 81.4 | 359.2 | 87.4 | 429.0 | 92.4 | 508.4 | 98.8 | 250 | Φ35 | Φ133 | Φ89 | Φ42 | 2500×2000×1850 | |
| 40 | 218.0 | 93.0 | 265.8 | 95.6 | 321.0 | 100.2 | 384.4 | 150.4 | 457.0 | 111.2 | |||||||||
| 45 | 188.6 | 113.2 | 231.8 | 116.4 | 261.2 | 121.8 | 338.2 | 128.2 | 403.2 | 1352 | |||||||||
| LXPL-FSF3 -240H | 3 | 35 | 369.0 | 116.7 | 447.9 | 122.1 | 538.8 | 131.1 | 643.5 | 138.6 | 762.6 | 148.2 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 4100×1950×1800 | |
| 40 | 327.0 | 139.5 | 398.7 | 143.4 | 481.5 | 151.8 | 576.6 | 158.1 | 685.5 | 166.8 | |||||||||
| 45 | 282.9 | 169.8 | 347.7 | 174.6 | 421.8 | 182.7 | 507.3 | 192.3 | 604.8 | 202.6 | |||||||||
| LXPL-BFSF4 -320H | 4 | 35 | 492.0 | 155.6 | 597.2 | 162.8 | 718.4 | 174.8 | 858.0 | 184.8 | 1016.8 | 197.6 | 500 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 4950×1950×1800 | |
| 40 | 436.0 | 186.0 | 531.6 | 191.2 | 642.0 | 202.4 | 768.8 | 210.8 | 914.0 | 222.4 | |||||||||
| 45 | 377.2 | 226.4 | 463.6 | 232.8 | 562.4 | 243.6 | 676.4 | 256.4 | 806.4 | 270.4 | |||||||||
| LXPL-FSF-90H | NRH3-90 -270Y (90KS) | 1 | 35 | 137.2 | 44.5 | 166.9 | 246.6 | 201.3 | 49.2 | 240.9 | 52.0 | 286.2 | 54.6 | 150 | Φ28 | Φ89 | Φ67 | Φ28 | 2600×1000×1500 |
| 40 | 121.2 | 52.4 | 148.4 | 54.3 | 179.8 | 56.9 | 215.9 | 60.0 | 257.2 | 63.0 | |||||||||
| 45 | 104.8 | 63.3 | 129.2 | 65.4 | 157.3 | 68.4 | 189.7 | 72.0 | 226.7 | 75.7 | |||||||||
| LXPL-BFSF2 -180H | 2 | 35 | 274.4 | 89.0 | 333.8 | 93.2 | 402.6 | 98.4 | 481.8 | 104.0 | 572.4 | 109.2 | 250 | Φ42 | Φ133 | Φ89 | Φ54 | 2500×2000×1850 | |
| 40 | 242.4 | 104.8 | 296.8 | 108.6 | 359.6 | 113.8 | 431.8 | 120.0 | 514.4 | 126.0 | |||||||||
| 45 | 209.6 | 126.6 | 258.4 | 130.8 | 314.0 | 136.8 | 379.4 | 144.0 | 453.4 | 151.4 | |||||||||
| LXPL-BFSF3 -270H | 3 | 35 | 411.6 | 133.5 | 500.7 | 139.8 | 803.9 | 147.6 | 722.7 | 156.0 | 858.0 | 163.8 | 400 | Φ42 | Φ108 ×2 | Φ108 | Φ54 | 3200×2100×1900 | |
| 40 | 363.6 | 157.2 | 445.2 | 162.9 | 539.4 | 170.7 | 647.7 | 180.0 | 771.6 | 189.0 | |||||||||
| 45 | 314.4 | 189.9 | 387.6 | 196.2 | 471.9 | 205.2 | 569.1 | 216.0 | 680.1 | 227.1 | |||||||||
| LXPL-BFSF4 -360H | 4 | 35 | 548.8 | 178.0 | 676.6 | 186.4 | 805.2 | 196.8 | 963.6 | 208.0 | 1144.8 | 1218.4 | 500 | Φ54 | Φ133 ×2 | Φ133 | Φ67 | 4950×1950×1800 | |
| 40 | 484.8 | 209.6 | 593.6 | 217.2 | 719.2 | 227.6 | 863.6 | 240.01 | 1028.8 | 252.0 | |||||||||
| 45 | 419.2 | 253.2 | 516.8 | 261.6 | 629.2 | 273.6 | 758.8 | 288.0 | 906.8 | 302.8 | |||||||||
| Model jedinice | Kom.Model | Kom. Curtity | Kondenzirajući temp. (℃) | Temp. isparavanja (℃) | Rezervoar (L) | Opskrba cijev (mm) | Usisavanje cijev (mm) | Gas Outiet cijev (mm) | tekućina ulazna cijev (mm) | Dimenzija (mm) (D׊×V) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapacitet hlađenja/ulazna snaga (kw) | |||||||||||||||||||
| LXPL-FSF -100H | NRH4-100 -300Y (100KS) | 1 | 35 | 152.5 | 47.9 | 185.3 | 50.0 | 223.3 | 52.9 | 267.0 | 55.9 | 316.9 | 58.8 | 150 | Φ35 | Φ89 | Φ67 | Φ35 | 2600×1000×1500 |
| 40 | 135.1 | 56.5 | 165.1 | 58.6 | 199.8 | 61.5 | 240.0 | 64.8 | 285.2 | 68.3 | |||||||||
| 45 | 116.9 | 68.5 | 143.9 | 70.9 | 175.0 | 74.2 | 210.9 | 78.3 | 252.0 | 82.6 | |||||||||
| LXPL-BFSF2 -200H | 2 | 35 | 305.0 | 95.8 | 370.6 | 100.0 | 446.6 | 105.8 | 534.0 | 111.8 | 633.8 | 117.6 | 300 | Φ42 | Φ133 | Φ108 | Φ54 | 2500×2100×1850 | |
| 40 | 270.2 | 113.0 | 330.2 | 117.2 | 399.6 | 123.0 | 480.0 | 129.6 | 570.4 | 133.6 | |||||||||
| 45 | 233.8 | 137.0 | 287.8 | 141.8 | 350.0 | 148.4 | 421.8 | 156.6 | 504.0 | 165.2 | |||||||||
| LXPL-BFSF3 -300H | 3 | 35 | 457.5 | 143.7 | 555.9 | 150.0 | 669.9 | 158.7 | 801.0 | 167.7 | 950.7 | 176.4 | 500 | Φ54 | Φ133 ×2 | Φ108 | Φ67 | 3200×2150×1900 | |
| 40 | 405.3 | 169.5 | 395.3 | 175.8 | 599.4 | 184.5 | 720.0 | 194.4 | 855.6 | 204.9 | |||||||||
| 45 | 350.7 | 205.5 | 431.7 | 212.7 | 525.0 | 222.6 | 632.1 | 234.9 | 756.0 | 247.8 | |||||||||
| LXPL-BFSF4 -400H | 4 | 35 | 610.0 | 191.6 | 741.2 | 200.0 | 893.2 | 211.6 | 106.8 | 223.6 | 1267.6 | 235.2 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 1950×1950×1800 | |
| 40 | 540.4 | 266.0 | 660.4 | 234.4 | 799.2 | 246.0 | 960.0 | 259.2 | 1140.8 | 273.2 | |||||||||
| 45 | 467.6 | 274.0 | 575.6 | 283.6 | 700.0 | 296.8 | 843.6 | 313.2 | 1008.0 | 330.4 | |||||||||
| LXPL-FSF -120H | NRH5-120 -360Y (120KS) | 1 | 35 | 181.7 | 55.9 | 221.4 | 58.6 | 267.5 | 61.7 | 320.6 | 64.9 | 381.2 | 67.7 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 160.8 | 65.1 | 197.0 | 67.5 | 238.9 | 70.8 | 287.0 | 74.6 | 342.1 | 78.2 | |||||||||
| 45 | 1392 | 78.1 | 171.7 | 80.7 | 2093 | 84.7 | 252.5 | 89.4 | 302.0 | 94.5 | |||||||||
| LXPL-BFSF2 -240H | 2 | 35 | 3634 | 111.8 | 442.8 | 117.2 | 535.0 | 123.4 | 641.2 | 129.8 | 762.4 | 135.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×2000×1250 | |
| 40 | 321.6 | 130.2 | 394.0 | 135.0 | 477.8 | 141.6 | 514.0 | 149.2 | 684.2 | 156.4 | |||||||||
| 45 | 278.4 | 156.2 | 343.4 | 161.4 | 418.6 | 169.4 | 505.0 | 178.8 | 604.0 | 189.0 | |||||||||
| LXPL-FSF3 -360H | 3 | 35 | 545.1 | 167.7 | 664.2 | 175.8 | 802.5 | 185.1 | 961.8 | 194.7 | 1143.6 | 703.1 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 4100×1950×1850 | |
| 40 | 482.4 | 195.3 | 591.0 | 202.5 | 716.7 | 212.4 | 861.0 | 223.8 | 1026.3 | 234.6 | |||||||||
| 45 | 417.6 | 234.3 | 515.1 | 242.1 | 627.9 | 254.1 | 757.5 | 268.2 | 906.0 | 283.5 | |||||||||
| LXPL-BFSF4 -480H | 4 | 35 | 726.8 | 233.6 | 885.6 | 234.4 | 1070.0 | 246.8 | 1282.4 | 259.6 | 1524.8 | 270.8 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 643.2 | 264.0 | 755.0 | 270.0 | 955.0 | 283.2 | 1148.0 | 298.4 | 1368.4 | 312.8 | |||||||||
| 45 | 556.8 | 312.4 | 686.8 | 322.8 | 837.2 | 338.8 | 1010.0 | 357.6 | 120.8 | 378.0 | |||||||||
| LXPL-FSF -110H | NRH6-110 -316Y (110KS) | 1 | 35 | 136.8 | 50.9 | 204.2 | 52.6 | 251.1 | 54.7 | 301.5 | 57.3 | 352.2 | 60.3 | 200 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 137.6 | 61.4 | 173.5 | 63.2 | 217.8 | 65.3 | 267.5 | 67.7 | 319.4 | 70.2 | |||||||||
| 45 | 112.8 | 734 | 140.6 | 75.9 | 178.6 | 78.4 | 224.0 | 81.0 | 273.4 | 83.7 | |||||||||
| LXPL-BFSF2 -220H | 2 | 35 | 327.6 | 101.8 | 408.4 | 1052 | 502.2 | 109.4 | 603.0 | 114.6 | 704.4 | 120.6 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×2000×1850 | |
| 40 | 275.2 | 122.8 | 347.0 | 126.4 | 435.6 | 130.6 | 535.0 | 135.4 | 638.8 | 140.4 | |||||||||
| 45 | 225.6 | 164.8 | 281.2 | 151.8 | 357.2 | 156.8 | 448.0 | 162.0 | 546.8 | 167.4 | |||||||||
| LXPL-BFSF3 -330H | 3 | 35 | 491.4 | 152.7 | 612.6 | 157.8 | 753.3 | 164.1 | 904.5 | 171.9 | 1056.6 | 180.9 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 4100×1950×1850 | |
| 40 | 412.8 | 184.2 | 520.5 | 189.6 | 653.4 | 195.9 | 602.5 | 203.1 | 958.2 | 210.6 | |||||||||
| 45 | 338.4 | 220.2 | 421.8 | 227.7 | 535.8 | 235.2 | 672.0 | 243.0 | 820.0 | 751.1 | |||||||||
| LXPL-BFSF4 -440H | 4 | 35 | 655.2 | 203.6 | 816.8 | 210.4 | 1004.4 | 218.8 | 1206.0 | 229.2 | 1408.8 | 241.2 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4950×1950×1800 | |
| 40 | 550.4 | 245.6 | 694.0 | 252.8 | 871.2 | 261.2 | 070.0 | 270.8 | 277.6 | 280.8 | |||||||||
| 45 | 451.2 | 293.6 | 552.4 | 303.6 | 714.4 | 313.6 | 896.0 | 324.0 | 1093.6 | 334.8 | |||||||||
| Model jedinice | Kom.Model | Kom. Curtity | Kondenzirajući temp. (℃) | Temp. isparavanja (℃) | Rezervoar (L) | Opskrba cijev (mm) | Usisavanje cijev (mm) | Gas Outiet cijev (mm) | liauid ulazna cijev (mm) | Dimenzija (mm) (D׊×V) | |||||||||
| -15 | -10 | -5 | 0 | 5 | |||||||||||||||
| Kapacitet hlađenja/ulazna snaga (kw) | |||||||||||||||||||
| LXPL-FSF-125H | NRH6-125 -372Y (125KS) | 1 | 35 | 196.0 | 60.0 | 242.1 | 62.5 | 296.2 | 65.2 | 353.5 | 68.3 | 411.5 | 71.7 | 250 | Φ42 | Φ108 | Φ76 | Φ54 | 2300×1000×1500 |
| 40 | 166.8 | 73.1 | 75.9 | 260.5 | 78.7 | 316.6 | 871.7 | 374.9 | 285.2 | 84.8 | |||||||||
| 45 | 135.6 | 88.0 | 172.0 | 91.7 | 217.9 | 95.2 | 270.4 | 98.5 | 326.5 | 101.7 | |||||||||
| LXPL-BFSF2-250H | 2 | 35 | 392.0 | 120.0 | 485.4 | 125.0 | 592.4 | 130.4 | 707.0 | 136.6 | 823.0 | 143.4 | 400 | Φ54 | Φ159 | Φ108 | Φ67 | 2500×1800×1800 | |
| 40 | 333.6 | 146.2 | 419.0 | 151.8 | 521.0 | 157.4 | 633.2 | 163.4 | 749.8 | 169.6 | |||||||||
| 45 | 271.2 | 176.0 | 344.0 | 173.4 | 435.8 | 190.4 | 540.8 | 197.0 | 653.0 | 230.9 | |||||||||
| LXPL-BFSF3 -375H | 3 | 35 | 588.0 | 180.0 | 728.1 | 187.5 | 888.6 | 195.6 | 1060.5 | 204.9 | 1234.5 | 215.1 | 600 | Φ67 | Φ133 ×2 | Φ133 | Φ76 | 3200×1800×1800 | |
| 40 | 500.4 | 219.3 | 628.5 | 277.7 | 781.5 | 236.1 | 949.8 | 245.1 | 1124.7 | 254.4 | |||||||||
| 45 | 406.8 | 264.0 | 516.0 | 275.1 | 653.7 | 285.6 | 811.2 | 295.5 | 979.5 | 305.1 | |||||||||
| LXPL-BFSF4 -500H | 4 | 35 | 784.0 | 240.0 | 970.8 | 250.0 | 1184.8 | 260.8 | 1414.0 | 273.2 | 1646.0 | 286.8 | 800 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 3900×1800×1800 | |
| 40 | 667.2 | 292.4 | 638.0 | 303.6 | 1042.0 | 314.8 | 1266.4 | 326.8 | 1499.6 | 339.2 | |||||||||
| 45 | 542.4 | 352.0 | 688.0 | 368.8 | 871.6 | 380.8 | 1081.6 | 394.0 | 1306.0 | 406.8 | |||||||||
| LXPL-FSF -140H | NRH6-140 -428Y (140KS) | 1 | 35 | 228.7 | 69.6 | 280.1 | 72.0 | 340.1 | 74.6 | 405.1 | 77.3 | 470.5 | 80.0 | 300 | Φ54 | Φ108 | Φ76 | Φ67 | 2300×1000×1500 |
| 40 | 199.5 | 85.0 | 247.8 | 87.9 | 305.4 | 90.6 | 368.7 | 93.2 | 434.3 | 95.6 | |||||||||
| 45 | 164.9 | 101.7 | 207.2 | 105.9 | 261.0 | 109.7 | 320.2 | 113.2 | 383.8 | 1116.2 | |||||||||
| LXPL-BFSF2 -280H | 2 | 35 | 457.4 | 139.2 | 561.42 | 144.0 | 681.4 | 149.2 | 810.2 | 154.6 | 941.0 | 160.0 | 500 | Φ67 | Φ139 | Φ108 | Φ76 | 2500×1800×1800 | |
| 40 | 399.0 | 170.0 | 495.6 | 175.8 | 610.8 | 181.2 | 737.4 | 186.4 | 868.6 | 191.2 | |||||||||
| 45 | 329.8 | 203.4 | 414.4 | 211.8 | 520.2 | 219.4 | 640.4 | 226.4 | 767.6 | 232.4 | |||||||||
| LXPL-FSF3 -420H | 3 | 35 | 686.1 | 208.8 | 842.1 | 216.0 | 1022.1 | 223.8 | 1215.3 | 231.9 | 1411.5 | 240.0 | 800 | Φ76 | Φ133 ×2 | Φ133 | Φ89 | 3200×1800×1800 | |
| 40 | 598.5 | 255.0 | 743.4 | 263.7 | 916.2 | 271.8 | 1106.1 | 279.6 | 1302.9 | 286.8 | |||||||||
| 45 | 494.7 | 305.1 | 621.6 | 317.7 | 780.3 | 239.1 | 960.6 | 339.6 | 1151.4 | 348.6 | |||||||||
| LXPL-BFSF4 -560H | 4 | 35 | 914.8 | 278.4 | 1122.8 | 288.0 | 1362.8 | 298.4 | 1621.6 | 309.2 | 1882.0 | 320.0 | 1000 | Φ89 | Φ159 ×2 | Φ159 | Φ108 | 3900×1800×1800 | |
| 40 | 798.0 | 340.0 | 991.2 | 351.6 | 1221.6 | 362.4 | 1474.8 | 372.8 | 1737.2 | 382.9 | |||||||||
| 45 | 659.6 | 406.8 | 828.8 | 423.6 | 1040.4 | 438.8 | 1280.8 | 452.8 | 1535.2 | 464.8 | |||||||||
| LXPL-FSF -160H | NRH6-160 -468Y (160KS) | 1 | 35 | 250.4 | 76.1 | 306.7 | 78.7 | 371.3 | 81.5 | 441.3 | 84.5 | 513.7 | 87.5 | 300 | Φ54 | Φ159 | Φ108 | Φ67 | 2300×1000×1500 |
| 40 | 218.3 | 93.0 | 271.3 | 96.1 | 333.7 | 99.1 | 402.5 | 101.9 | 474.5 | 104.6 | |||||||||
| 45 | 180.2 | 111.2 | 227.5 | 115.8 | 285.2 | 120.0 | 350.2 | 123.8 | 419.3 | 127.1 | |||||||||
| LXPL-BFSF2 -320H | 2 | 35 | 500.8 | 152.2 | 613.4 | 157.4 | 742.6 | 163.0 | 882.6 | 169.0 | 1027.4 | 175.0 | 600 | Φ67 | Φ133 | Φ133 | Φ76 | 2500×2000×1850 | |
| 40 | 436.6 | 186.0 | 547.2 | 192.0 | 667.4 | 198.2 | 805.0 | 203.8 | 949.0 | 209.2 | |||||||||
| 45 | 360.4 | 222.4 | 455.0 | 231.6 | 570.4 | 240.0 | 700.4 | 247.6 | 838.6 | 254.2 | |||||||||
| LXPL-BFSF3 -480H | 3 | 35 | 751.2 | 228.3 | 921.0 | 236.1 | 1113.9 | 244.5 | 1323.9 | 253.5 | 1541.1 | 262.5 | 900 | Φ76 | Φ159 ×2 | Φ133 | Φ89 | 4100×1950×1750 | |
| 40 | 654.9 | 279.0 | 813.9 | 288.3 | 1001.1 | 297.3 | 1207.5 | 305.7 | 1423.5 | 313.8 | |||||||||
| 45 | 540.6 | 333.6 | 682.5 | 347.4 | 855.6 | 360.0 | 1050.6 | 371.4 | 1257.9 | 381.3 | |||||||||
| LXPL-BFSF4 -640H | 4 | 35 | 1001.6 | 304.4 | 1276.8 | 314.8 | 1485.2 | 326.0 | 1765.2 | 338.0 | 2054.8 | 350.0 | 1200 | Φ89 | Φ159 ×2 | Φ159 | Φ108 | 4950×1950×1800 | |
| 40 | 873.2 | 372.0 | 1085.2 | 384.4 | 1334.8 | 396.4 | 1610.0 | 401.6 | 1898.0 | 418.4 | |||||||||
| 45 | 720.8 | 444.8 | 910.0 | 463.2 | 140.8 | 480.0 | 1400.8 | 495.2 | 677.2 | 508.4 | |||||||||

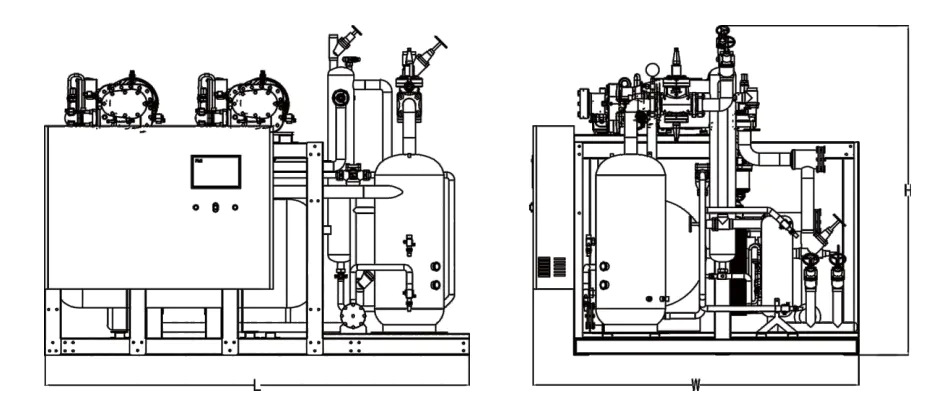

Prikaz detalja
Kontaktirajte nas
O NAMA
Zhejiang Lanxi Refrigeration Equipment Co., Ltd.
Kao Kina FRASCOLD SPA jedinica za visoke temperature Dobavljači i FRASCOLD SPA jedinica za visoke temperature Tvornica,
Zhejiang Lanxi Refrigeration Equipment Co., Ltd. specijalizirana za učinkovita, zelena i održiva rashladna rješenja. Koristeći visokokvalitetne proizvode i inovativne tehnologije, služimo sektorima prehrane, farmacije, kemije i logistike hladnog lanca, stvarajući energetski učinkovite i ekološki prihvatljive sustave za naše kupce te potičući obostrano koristan razvoj industrije i okoliša.
Potvrda o časti
Vijesti
-
Što je industrijski hladnjak zraka i kako radi u rashladnom sustavu? Zamislite rashladnu komoru srednje veličine izgrađenu za držanje zamrznute hrane na -22°C. Kompresorska jedinica i kondenzator nalaze se vani, ali oprema koja ...
PROČITAJ VIŠE -
Kompletan vodič za odabir kondenzatora: Odaberite pravi kondenzator za industrijske i HVAC sustave Kondenzator je ključna komponenta za prijenos topline koja se široko koristi u HVAC sustavima, industrijskom hlađenju, kemijskoj obradi...
PROČITAJ VIŠE -
Vodič za prilagodbu OEM dobavljača inženjeringa hladnjača Kako raste potražnja za segmentiranim tržištima u inozemnoj industriji rashladnog lanca, mnogi dobavljači i trgovci inženjeringa za hladnjače imaju za cilj stvoriti vlastite ma...
PROČITAJ VIŠE
KONTAKTIRAJTE NAS
BRZI LINKOVI
PROIZVODI
KONTAKTNI PODACI
- E-pošta: [email protected]
- Telefon: +86-15258555916
- Adresa: 301 Punan Avenue, Pukou Street, Shengzhou City, Shaoxing City, Zhejiang Province.China
Autorsko pravo © Zhejiang Lanxi Refrigeration Equipment Co., Ltd. Sva prava pridržana.
浙ICP备2022034605号-1
Veletrgovina FRASCOLD SPA jedinica za visoke temperature Tvornica
